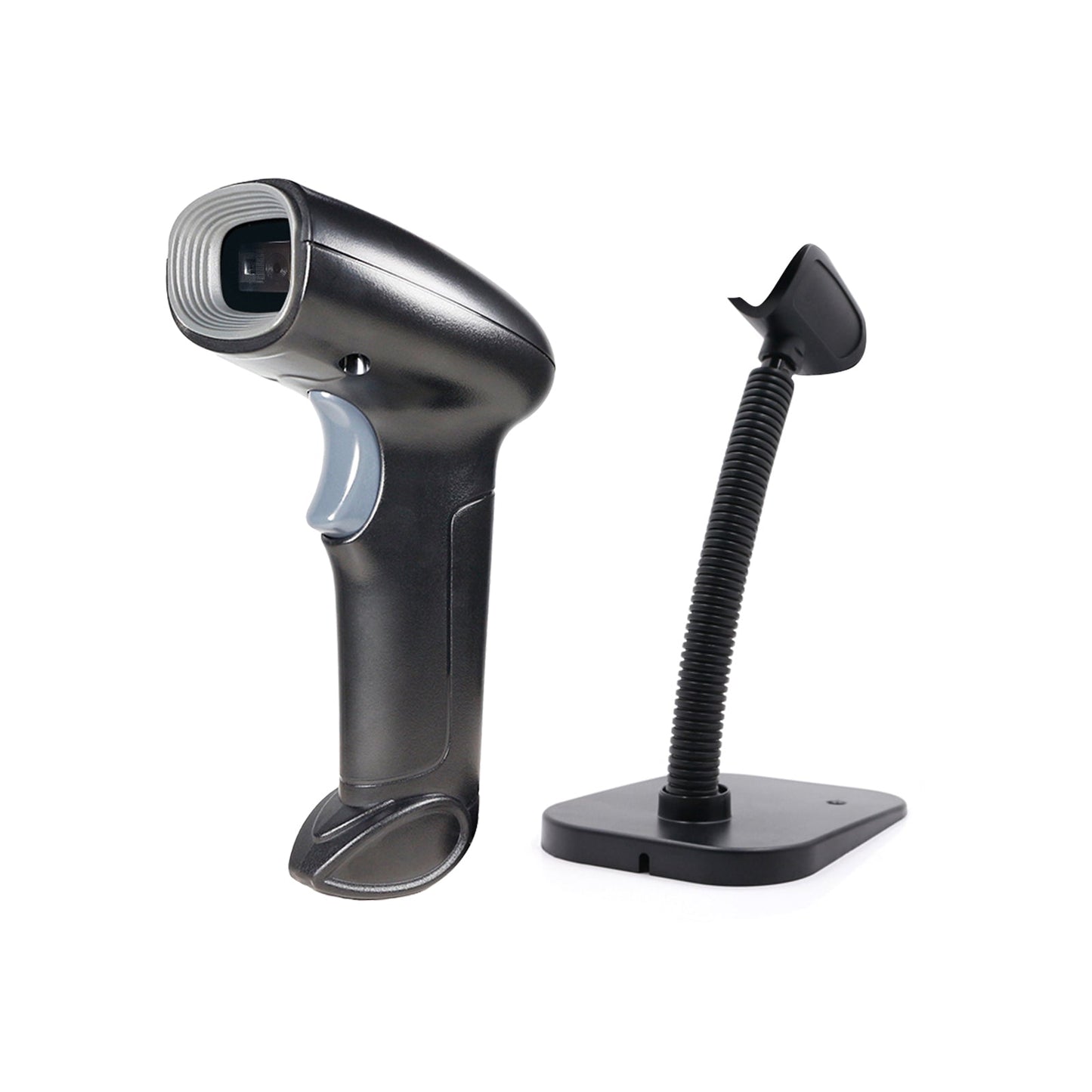

HS-22 Intelligent 1D + 2D Laser Scanner Bar Code Reader Handheld Gun with Stand
Couldn't load pickup availability
1D+2D 2 In 1 Intelligent Automatic USB Laser Scan Barcode Scanner Bar Code Reader Handheld Gun HS-22 With Bracket
Specifications:
Image Sensor: Coms 640*480
Illumination LED: White LED
Aimer: Red LED
Min Decode Resolution: ≥5mil
Decode Range:
EAN-13 (13mil): 35mm~ 190mm(Bar Code Size:17mm*31mm)
PDF417 (6mil): 20mm~70mm(Bar Code Size:14mm*7mm)
Code39 (4.7mil): 25mm~60mm(Bar Code Size:6mm*21mm)
Data Matrix (10mil): 20mm~75mm(Bar Code Size:5mm*5mm)
QR Code (15mil): 20mm~90mm(Bar Code Size:10mm*10mm)
Minimum Print Contrast: ≥20%
Scan Angle: Skew±70°,Pitch±70°,Roll 360°
FOV: 52.1°(D) ,43.1°(H)
Interface: USB、RS-232
Dimension(mm): 165(W)×70 (D)×90(H)(Max)
Voltage: 5 VDC±5%
Power Consumption: 950mW(Typical)
Operating current:190mA(RMS Typical),220mA(RMS Max)
Standby current:70mA
Sleep current:17mA
Operating:-10℃~+60℃
Storage:-40℃~+70℃
Humidity:5%~95%(Non-Condensing)
Embient Light:0~100,000LUX
USB:USB Cable
RS-232:RS-232 Cable and Power Supply
Descriptions:
1. Easy to use & handle types of POS system,Retail Point of Sales, Inventory, Heathcare, Hospiblity.
2. Comfortable operate,rich decoded types
3. Handheld type laser barcode scanner with USB cable, scanner bracket, LED and buzzer indicator
4. Low power consumption
5. Can be used without the keyboard.
6. Simple installation, Wedge, Serial, Wand Emulation ic, NO software drivers required
7. Supports over twenty different country layouts
8. READ/NO-READ indicators (buzzer and LED)
9. Superior reading performance ufili2ing advanced decoding algorithms
10. Extended ASCII support for Code 128 bar codes
11. Compatible Computer Systems:
Linux,Android,Mac,Windows XP、 7、8、10 etc.
12. Compatible Decode Models
(One-Dimensional/1D):
Codabar、Code 39、Code 32、Interleaved 2 of 5、Industrial 2 of 5、Matrix 2 of 5、Code 93、Code 11、Code 128、UPC-A、UPC-E、EAN -8、EAN -13、MSI、ISSN、ISBN、GS1 DataBar...
(Two-Dimensional/2D):
PDF417、Micro PDF417、QR Code、Micro QR、Aztec、Data Matrix
Setting Code Models(You Can Scan Codes in User Manual to Setting):
1. Restore factory setting
2. USB COM
3. Serial port mode
4. HID-KBW
5. Trigger Scan
6. Continuous Scan
7. Auto Sense Mode
8. Add Suffix / No suffix
9. Suffix as 0x0D 0x0A / Suffix as 0x0D
Note:Connect with USB Connection Cable and Use,If you wanna take the cable out ,Use a paper clip or needle or toothpick insert into the hole then pull out.
Package Included:
1x USB Barcode Scanner
1x USB Connection Cable
1x User Manual
1x Scanner Bracket
1x Paper clip(For Take out the USB cable)Shipping
1. Free Shipping
2. Location: Leicestershire
3. Shipping time: 3-8 buisness days via Royal Mail or FedEx.
Warranty:
Guarantee Period: 1 Years
Returns & Refunds: Customers can return the goods within 60 days of receipt and process quick refund within one day
24-Hour Support: Provide you with timely after-sale support
