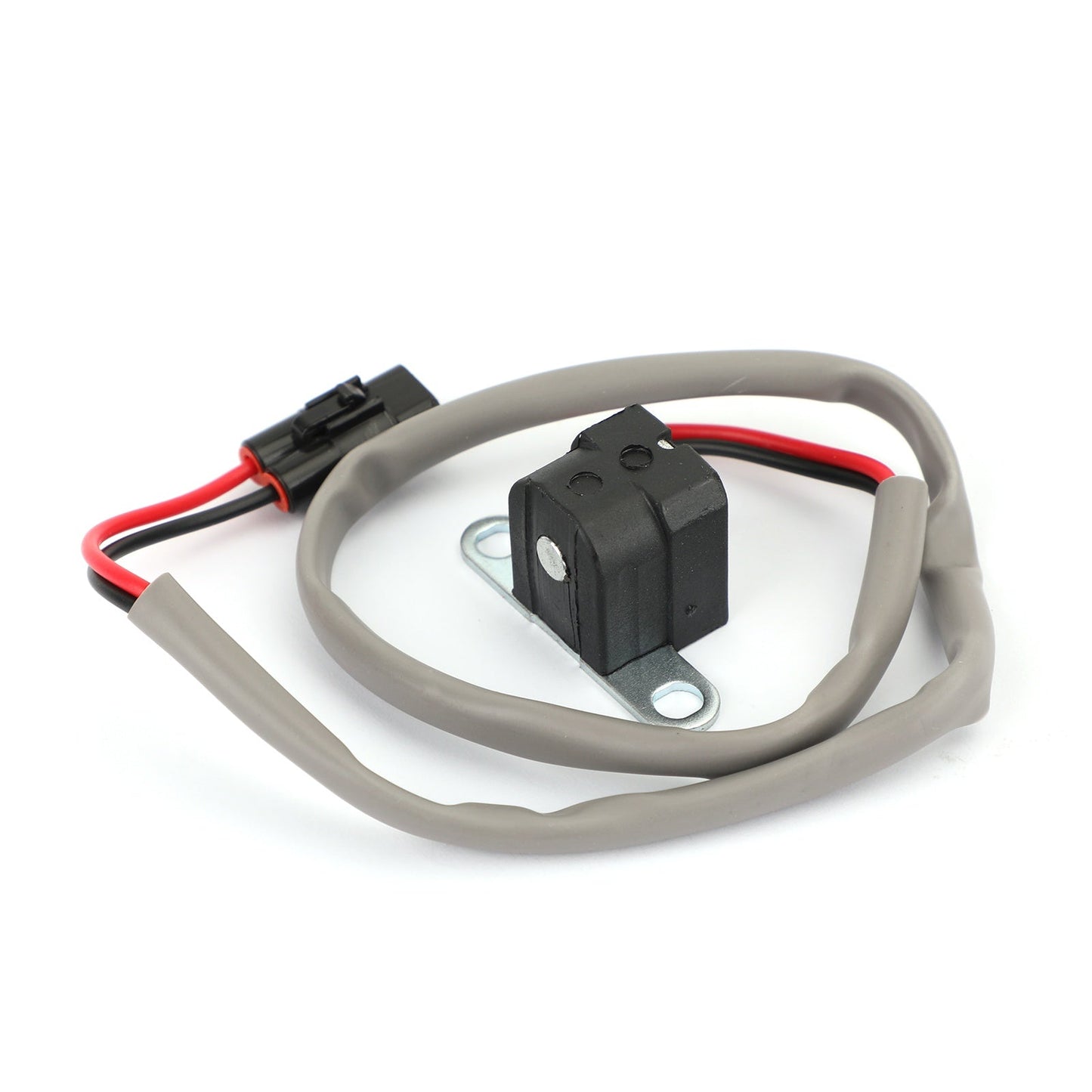

Pick-up Pulsar / Pulsing Coil Fit For Suzuki 40-225hp Outboard 32160-87J10 32160-87L00

Features:
Brand new pickup/pulsar coil for you to repair your stator.
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
Often unavailable from the OEM manufacturer.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Pick up pulsar coil

Dimensions:
Height: 19.9mm
Length: 23.2mm
Width: 18.75mm
Bracket center to center: 35.2mm
Wires length: Approx.500mm

Other Specifications:
Number of wires: 2
Number of plugs: 1

PART NUMBER(S):
32160-87J10
32160-87L00

Fitments:
Fit for Suzuki DF100 2009-2012
Fit for Suzuki DF115 2001-2012
Fit for Suzuki DF140 2002-2012
Fit for Suzuki DF150 2006-2012
Fit for Suzuki DF175 2006-2012
Fit for Suzuki DF200 2004-2011
Fit for Suzuki DF225 2004-2011
Fit for Suzuki DF250 2004-2011
Fit for Suzuki DF300 2007-2011
Fit for Suzuki DF40 2001-2010
Fit for Suzuki DF50 1999-2010
Fit for Suzuki DF60 1999-2009
Fit for Suzuki DF70 1998-2009
Fit for Suzuki DF90 2001-2008
Fit for Suzuki DF70A 2009-2017
Fit for Suzuki DF80A 2009-2017
Fit for Suzuki DF90A 2009-2017

Package Included:
1x Pick up pulsar coil

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

NOTE:
Not following these instructions may result in damaging the part or other components on your vehicle.
-By using a small soldering iron weld the wires to the ones on your OEM wiring harness.
-Insulate your solders with heat shrink.
-Before attempting to start your vehicle, adjusting the air gap is necessary for certain models.
-Rotate the fly wheel by hand so the raised node is lined up with the pick up /pulsar coil and adjust as close as possible, but no less than 0.010 in.
-If no spark or erratic spark, switch the wires at the plug.
