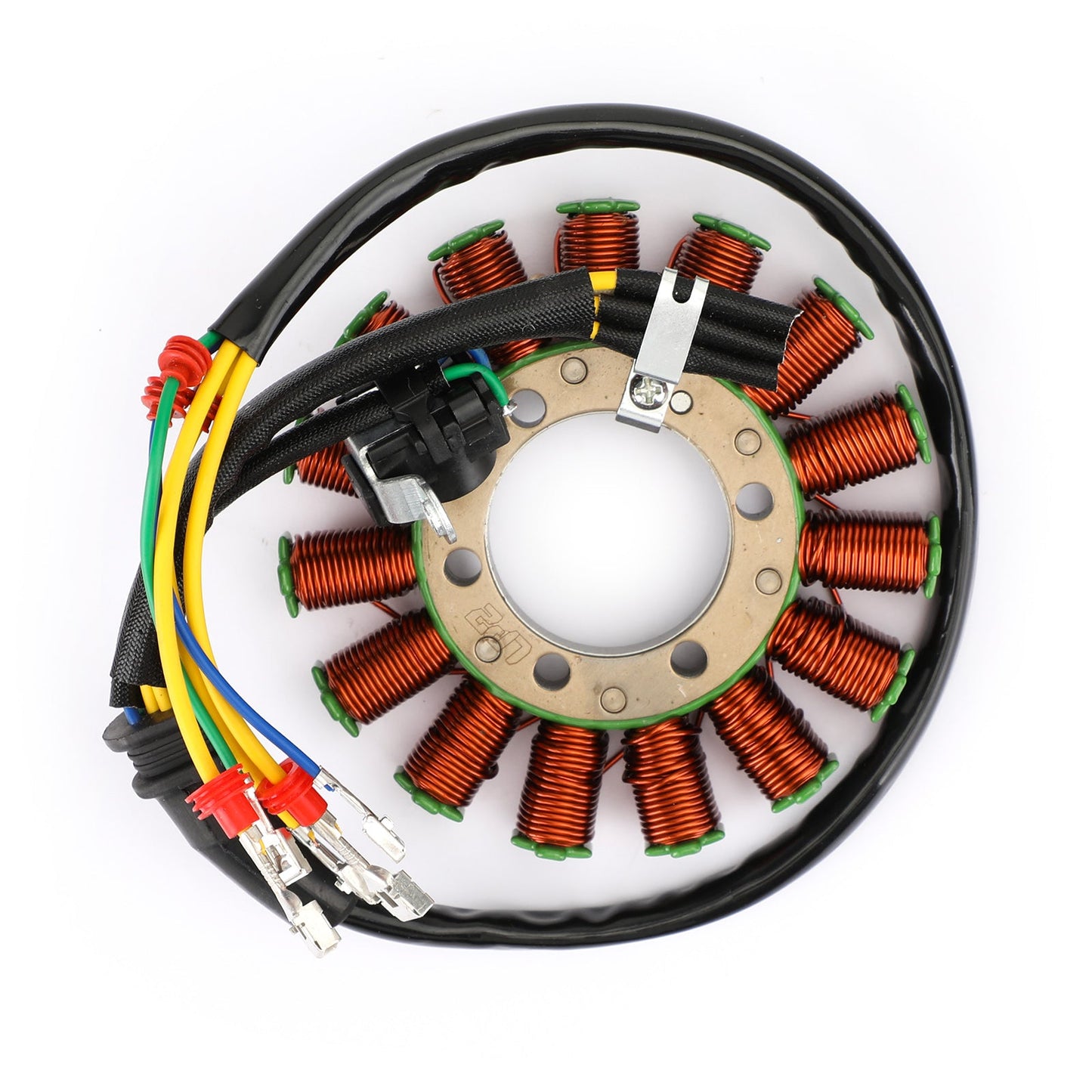

Magneto Generator Engine Stator Coil Fit For Honda SXS700M2 SXS700M4 Pioneer 700 700-2 2014-2021

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.

Specifics:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

Dimensions :
Interior diameter : 41mm
Exterior diameter : 114.8mm
Pole's Thickness : 19.7mm
Pole's Width : 14.5mm

Other Specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 5
Number of fixation holes: 5
Number of poles: 15

Reference Part Number:
31120-HL3-A01

Fitments:
Fit for Honda Pioneer 700 SXS700 2014-2021
Fit for Honda Pioneer 700-4 SXS700M2 4AC 2014
Fit for Honda Pioneer 700-4 SXS700M4 3AC 2014
Fit for Honda Pioneer 700-4 SXS700M4 2AC 2015-2016
Fit for Honda Pioneer 700-4 SXS700M4 AC 2014-2015
Fit for Honda Pioneer 700 SXS700M2 2AC 2014-2016
Fit for Honda Pioneer 700 SXS700M2 A 2018-2021
Fit for Honda Pioneer 700 SXS700M2 AC 2015-2021
Fit for Honda Pioneer 700 SXS700M2D 2A 2019-2021
Fit for Honda Pioneer 700 SXS700M2D 2AC 2017-2021
Fit for Honda Pioneer 700 SXS700M2D A 2018-2021
Fit for Honda Pioneer 700 SXS700M2D AC 2017-2021
Fit for Honda Pioneer 700 SXS700M4 A 2018-2021
Fit for Honda Pioneer 700 SXS700M4 AC 2016-2021
Fit for Honda Pioneer 700 SXS700M4D 2A 2018-2021
Fit for Honda Pioneer 700 SXS700M4D 2AC 2017-2021
Fit for Honda Pioneer 700 SXS700M4D A 2018-2021
Fit for Honda Pioneer 700 SXS700M4D AC 2017-2021

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package includes:
1x Generator Stator Coil

Note:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
