Magneto Generator Stator Fit for Yamaha YZF-R3 R3 ABS 2019-2023 MT-03 MT03 2020-2023

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
Rubber grommet included.

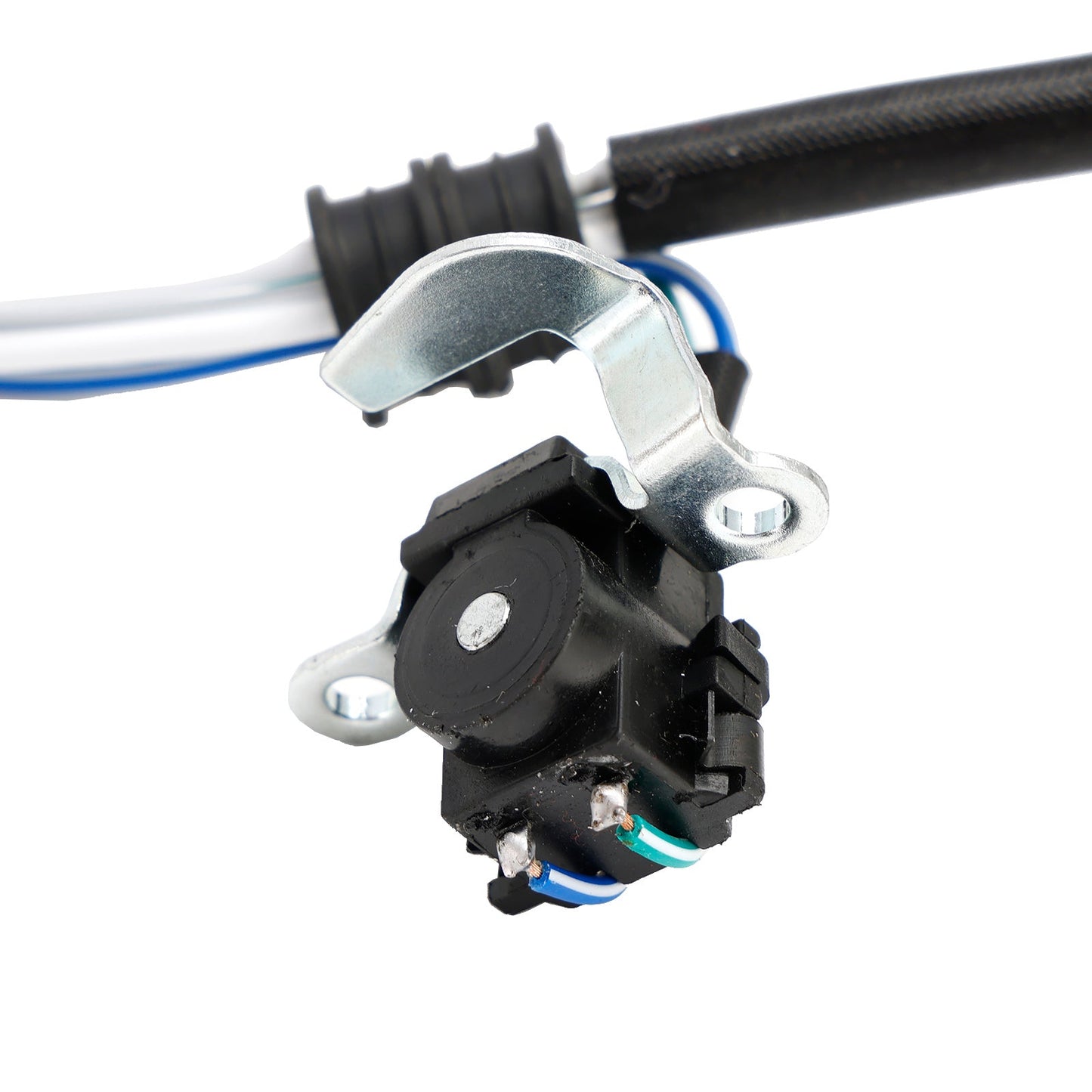

Pick up pulsar coil included.
All products shipped are tested.
As an inexpensive alternative to the expansive original part.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Stator Coil

other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 3 + 2
Number of poles: 18

Replacement Part Number:
BS7-H1410-00

Fits Make/Year/Model:
Fit for Yamaha Motorcycle 2019 YZF-R3 - YZFR3KB
Fit for Yamaha Motorcycle 2019 YZF-R3 - YZFR3KL
Fit for Yamaha Motorcycle 2019 YZF-R3 ABS - YZFR3AKB
Fit for Yamaha Motorcycle 2019 YZF-R3 ABS - YZFR3AKW
Fit for Yamaha Motorcycle 2020 YZF-R3 - YZFR3LL
Fit for Yamaha Motorcycle 2020 YZF-R3 ABS - YZFR3ALB
Fit for Yamaha Motorcycle 2020 YZF-R3 ABS - YZFR3ALL
Fit for Yamaha Motorcycle 2020 YZF-R3 ABS - YZFR3ALME
Fit for Yamaha Motorcycle 2020 YZF-R3 ABS - YZFR3ALS
Fit for Yamaha Motorcycle 2021 YZF-R3 ABS - YZFR3AMB B5LL
Fit for Yamaha Motorcycle 2021 YZF-R3 ABS - YZFR3AML B5LL0
Fit for Yamaha Motorcycle 2021 YZF-R3 ABS - YZFR3AMT B5LL1
Fit for Yamaha Motorcycle 2021 YZF-R3 MONSTER - YZFR3AMME B5LJ
Fit for Yamaha Motorcycle 2022 YZF-R3 ABS - YZFR3ANB B5LU0
Fit for Yamaha Motorcycle 2022 YZF-R3 ABS - YZFR3ANL B5LU
Fit for Yamaha Motorcycle 2022 YZF-R3 ABS WGP 60TH - YZFR3ANW B5LR
Fit for Yamaha Motorcycle 2023 YZF-R3 ABS - YZFR3APB
Fit for Yamaha Motorcycle 2023 YZF-R3 ABS - YZFR3APL
Fit for Yamaha Motorcycle 2023 YZF-R3 ABS - YZFR3APP

Fit for Yamaha Motorcycle 2020 MT-03 - MT03LB
Fit for Yamaha Motorcycle 2020 MT-03 - MT03LGY
Fit for Yamaha Motorcycle 2021 MT-03 - MT03MB B5W81
Fit for Yamaha Motorcycle 2021 MT-03 - MT03MGY B5W8
Fit for Yamaha Motorcycle 2022 MT-03 - MT03NB B5WD1
Fit for Yamaha Motorcycle 2022 MT-03 - MT03NGY B5WD0
Fit for Yamaha Motorcycle 2022 MT-03 - MT03NL B5WD
Fit for Yamaha Motorcycle 2023 MT-03 - MT03PB
Fit for Yamaha Motorcycle 2023 MT-03 - MT03PGY
Fit for Yamaha Motorcycle 2023 MT-03 - MT03PL

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Stator Generator

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it.
ALWAYS START WITH A FULLY CHARGED BATTERY !

The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
