Magneto Coil Stator + Voltage Regulator + Gasket Assy Fit For Yamaha SR Viper LTX RTX MTX XTX STX 2015-2018

Features:
Kit include Stator, Regulator Rectifier and gasket.
Meet or exceeds the OEM quality, direct replacement to your original unit.
Perfect fit and ready to install.
Always use a sealant to mount the cable gland joint.
Instruction is NOT included.

ATTENTION:
One of the most common reasons a stator breaks down is due to a broken regulator, which burns the stator in no time.
Therefore we highly recommend you to switch both parts.
Technically modified stators are excluded from exchange.
This regulator is not suitable for lithium-ion batteries! The battery or other electric parts can be damaged!

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator and Regulator Kit

other specification:
Stator
Number of plugs: 1
Number of wires: 3
Number of pins: 3
Number of poles: 18

Regulator
Number of plugs: 2
Number of pins: 2 + 3

Replacement Part Number:
Stator Assy: 8HF-81410-00, 8HU-81410-00
Rectifier, regulator: 1D7-81960-00, 1D7-81960-01, 8JP-H1960-00

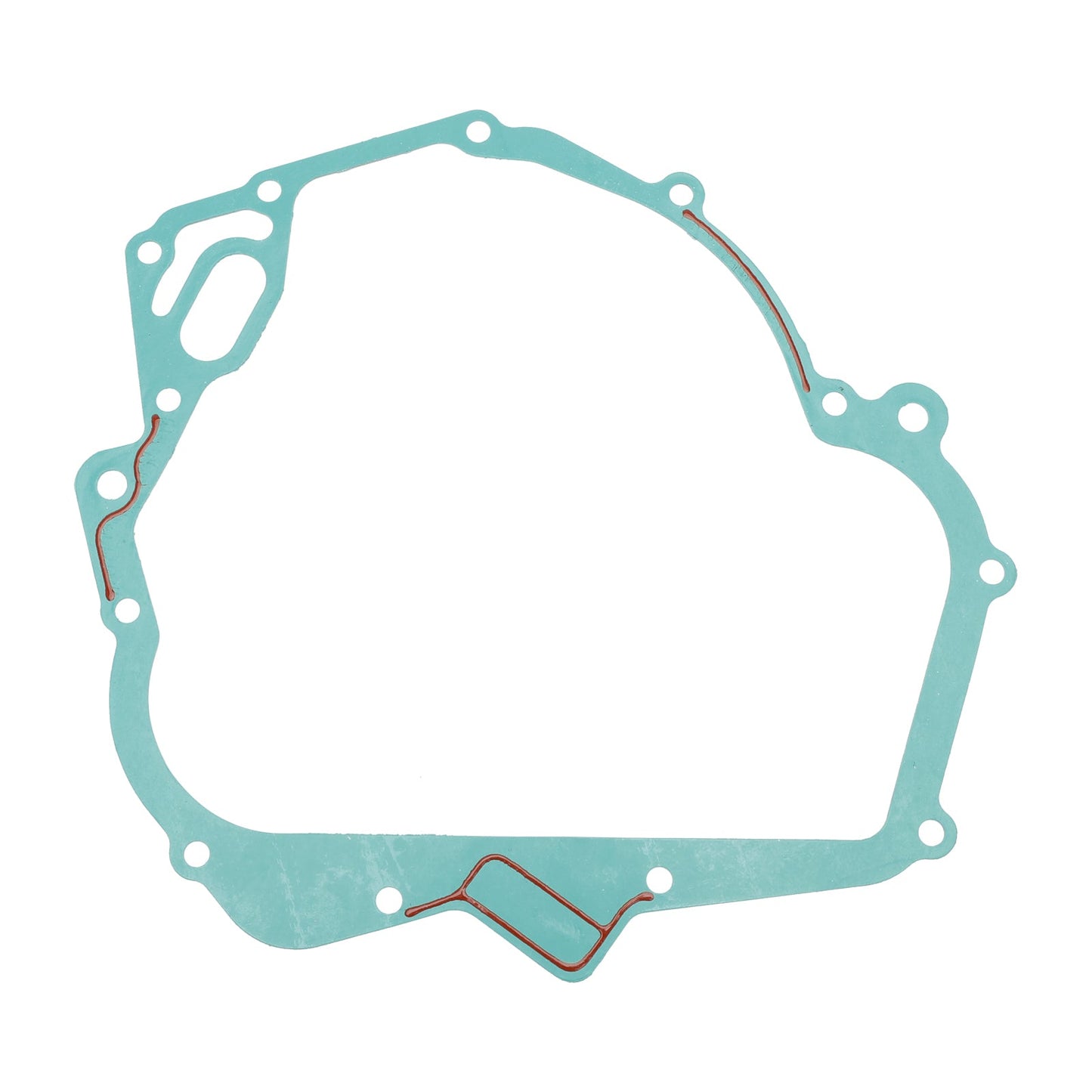

Gasket, generator cover: 8ES-15461-00, 8ES-15461-01

Fits Make/Model/Year:
Fit for Yamaha RS Venture DX 2018
Fit for Yamaha RS Venture GT 2009-2015
Fit for Yamaha RS Venture TF 2009-2022
Fit for Yamaha RS Venture TF E-BAT 2016-2018
Fit for Yamaha RS Venture TF LE 2016-2017
Fit for Yamaha RS Vector 2012-2018
Fit for Yamaha RS Vector LE 2016
Fit for Yamaha RS Vector X-TX LE 2016-2017
Fit for Yamaha RS Vector X-TX 2016-2017
Fit for Yamaha RS Vector GT 2010-2011/2016-2018
Fit for Yamaha RS Vector L-TX 2012-2015
Fit for Yamaha RS Vector LT GT 2010-2011
Fit for Yamaha SR Viper L-TX 2014/2018-2019
Fit for Yamaha SR Viper L-TX SE 2014-2017/2020
Fit for Yamaha SR Viper L-TX LE 2015-2017
Fit for Yamaha SR Viper L-TX DX 2015-2018
Fit for Yamaha SR Viper L-TX LE 50TH 2018
Fit for Yamaha SR Viper L-TX GT 2020-2024
Fit for Yamaha SR Viper R-TX 2014-2018
Fit for Yamaha SR Viper R-TX SE 2014-2017
Fit for Yamaha SR Viper R-TX DX 2015
Fit for Yamaha SR Viper R-TX LE 2015-2016
Fit for Yamaha SR Viper R-TX DX 2016-2017
Fit for Yamaha SR Viper M-TX 153 2015-2016
Fit for Yamaha SR Viper M-TX 162 2016
Fit for Yamaha SR Viper M-TX 153 SE 2015-2017
Fit for Yamaha SR Viper M-TX 141 SE 2016
Fit for Yamaha SR Viper M-TX 162 SE 2015-2017
Fit for Yamaha SR Viper M-TX 162 LE 2015-2016
Fit for Yamaha SR Viper M-TX 153 LE 2016
Fit for Yamaha SR Viper S-TX DX 2015
Fit for Yamaha SR Viper S-TX DX 137 2016-2017
Fit for Yamaha SR Viper S-TX DX 146 2016-2017
Fit for Yamaha SR Viper X-TX SE 2014-2016
Fit for Yamaha SR Viper X-TX LE 2016-2017
Fit for Yamaha SR Viper X-TX SE 141 2018
Fit for Yamaha FX Nytro 2012-2014
Fit for Yamaha FX Nytro M-TX 153 SE 2012-2014
Fit for Yamaha FX Nytro M-TX 162 SE 2012-2015
Fit for Yamaha FX Nytro R-TX 2012-2013
Fit for Yamaha FX Nytro R-TX SE 2012-2013
Fit for Yamaha FX Nytro X-TX 2010-2014
Fit for Yamaha FX Nytro X-TX 1.75 2013-2014
Fit for Yamaha VK10 VK Professional II 2016-2018/2020
Fit for Yamaha VK10G VK Professional II EPS 2018
Fit for Yamaha VK10 Professional II E 2021-2022

(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package Includes:
1 x Generator Stator
1 x Voltage Regulator
1 x Crankcase Gasket

(Comes exactly as pictured.)

Note:
Before installing your new stator regulator rectifier;

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
Our stator / regulator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

You will get exactly what you see in pictures, if in doubt do not hesitate to compare our item to your original part.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
