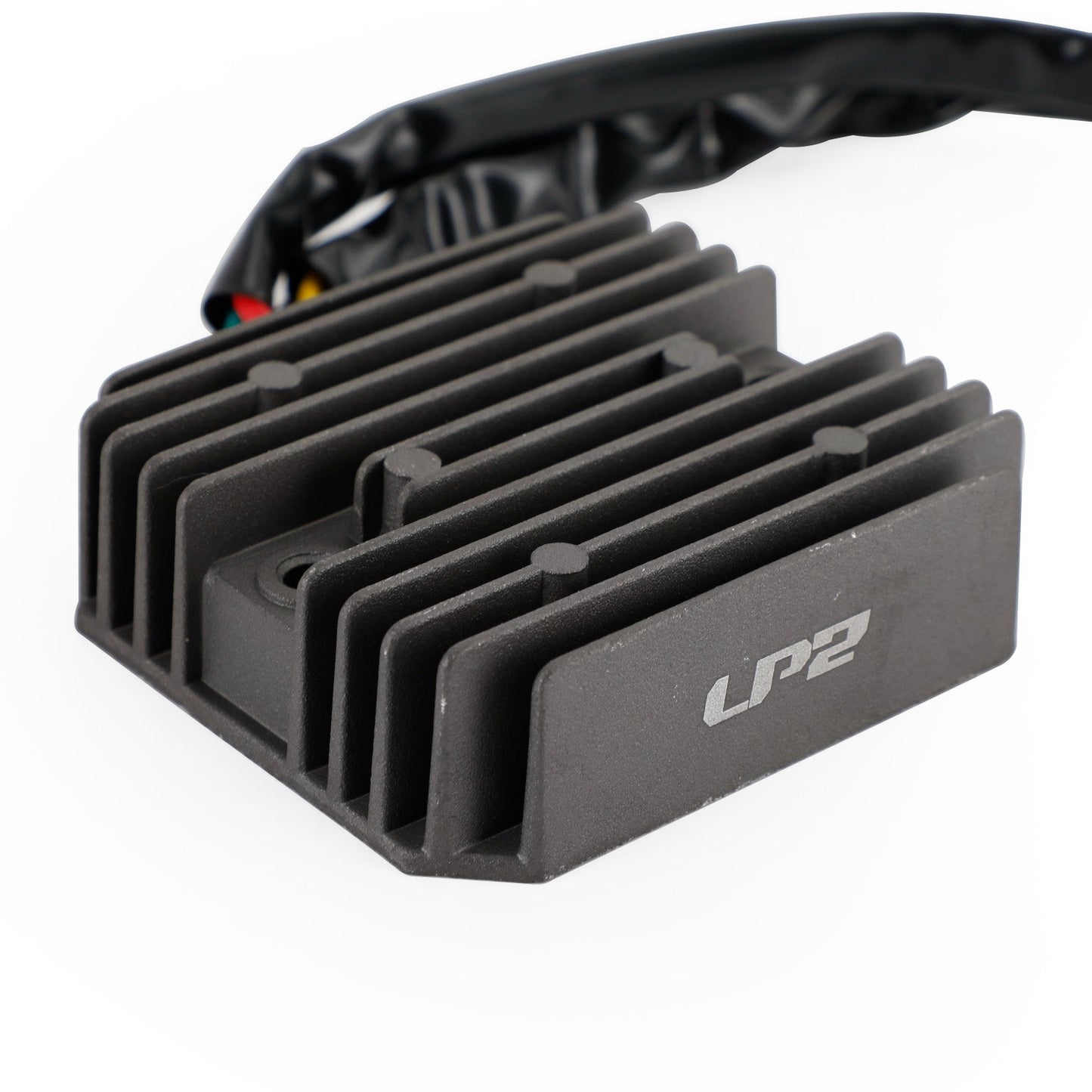

Voltage Regulator Rectifier Fit for Kymco 125 200 300 400 K-Xct I 2013-2017

Features:
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
No assembly required.
Higher grade of electric components.
Improved heat sink and charging capabilities.
The quality exceeds or meet the OEM equipment.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1 PC
Type: Voltage Regulator / Rectifier

other specifications:
Number of wire: 6
Number of plug: 2
Number of pin: 6

This controller is equipped with two connectors:
- One connector with four flat female terminals.
- One plug with two flat female terminals.

Dimensions:
Width: 93.5mm
Length: 82mm
Thickness: 34mm
Diameter of the mounting holes: 7mm
Between axis of the mounting holes: 80mm

Replacement Part Number:
31600-LKF5-E00

Fitment:
Fit for Kymco CV3 550
Fit for Kymco AK550 AK550 2017
Fit for Kymco K-XCT 125 125i 2013-2017
Fit for Kymco K-XCT 200 200i 2013-2017
Fit for Kymco K-XCT 300 300i 2013-2017
Fit for Kymco K-XCT 400 400i 2013-2017
Fit for Kymco Xciting 400 400i 2013-2017

(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package Includes:
1x Voltage Regulator Rectifier

NOTE:
Before installing your new regulator rectifier;

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.

How to distinguish CDI box with AC fired or CDI box with DC fired?
If headlights turn on without the engine running(with just the key on), it is a DC system. In the AC system, turning headlights on require the engine to be running. Another indication is, if the engine will only runs with a battery it is DC. If it will runs without a battery, it is a AC system.

What does the voltage regulator do?
This regulator has the task of converting the alternating voltage (AC) generated by the alternator into the direct voltage (DC) 12V used in the vehicle electrical system and keeping the voltage within a certain range.
The voltage regulator is also responsible for ensuring that the battery is charged and that the light bulbs do not burn out.

How do I know if the charge regulator can be defective?
- Incandescent lamps burn out all the time.
- Headlights get brighter and darker.
- The battery is constantly empty.Shipping
