Magneto Coil Stator + Voltage Regulator + Gasket Assy For 450 500 XC-W EXC 2012-2016 - 83039004000

Features:
Kit include Stator, Regulator Rectifier and gasket.
Meet or exceeds the OEM quality, direct replacement to your original unit.
Perfect fit and ready to install.
Always use a sealant to mount the cable gland joint.
Instruction is NOT included.

ATTENTION:
One of the most common reasons a stator breaks down is due to a broken regulator, which burns the stator in no time.
Therefore we highly recommend you to switch both parts.
Technically modified stators are excluded from exchange.
This regulator is not suitable for lithium-ion batteries! The battery or other electric parts can be damaged!

Specifications:
Condition: Aftermarket 100% Brand New
Type: Stator and Regulator Kit

other specification:
Stator
Number of plugs: 1
Number of wires: 3
Number of pins: 3
Number of poles: 18
Interior diameter: 35mm
Exterior diameter: 89mm

Regulator
Number of plugs: 2
Number of pins: 3 + 4
Number of wires: 7

Replacement Part Number:
Stator Assy: 83039004000
Rectifier, regulator: 78111034000
Gasket, generator cover: 78130040000

Fits Model/Year:
Fit for Husqvarna FR450 Rally 2017
Fit for Husqvarna FE450 2013-2016
Fit for Husqvarna FE450 HQV 2014
Fit for Husqvarna FE501 2013-2016
Fit for Husqvarna FE501S 2015-2016
Fit for Husqvarna FE501 HQV 2014

Fit for Husaberg FR450 Rally 2017
Fit for Husaberg FE450 2013-2016
Fit for Husaberg FE501 2013-2016
Fit for Husaberg FE501S 2015-2016

Fit for 450 XC-W 2012-2016
Fit for 450 EXC 2012-2016
Fit for 450 EXC SIX DAYS 2012-2016
Fit for 450 EXC FACTORY EDITION 2015
Fit for 450 RALLY FACTORY REPLICA 2015-2017
Fit for 500 XC-W 2012-2016
Fit for 500 EXC 2012-2016
Fit for 500 EXC SIX DAYS 2012-2016

(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

Package Includes:
1 x Ignition Stator
1 x Voltage Regulator

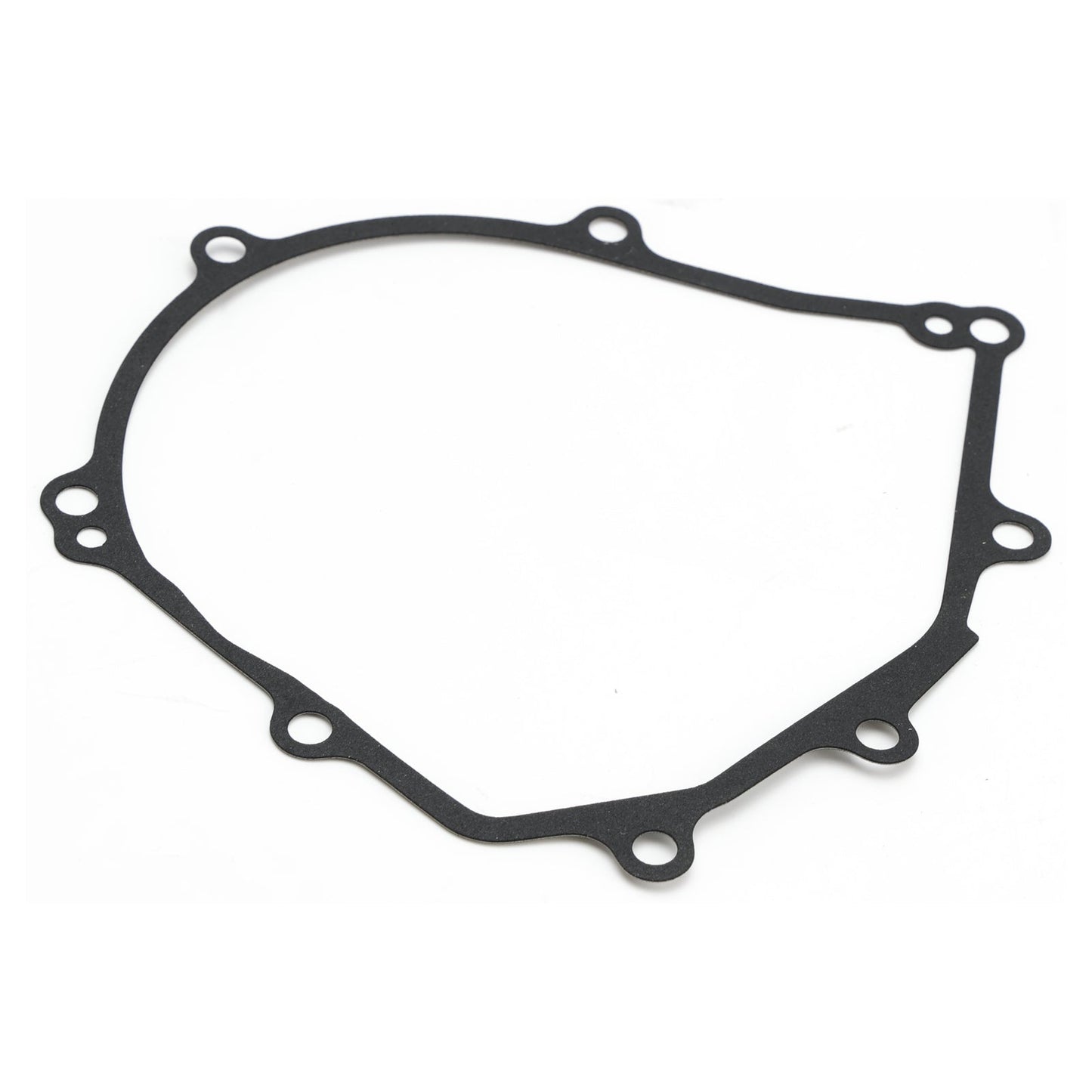

1 x Generator Gasket

(Comes exactly as pictured.)

Note:
Before installing your new stator regulator rectifier;

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
Our stator / regulator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

You will get exactly what you see in pictures, if in doubt do not hesitate to compare our item to your original part.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
